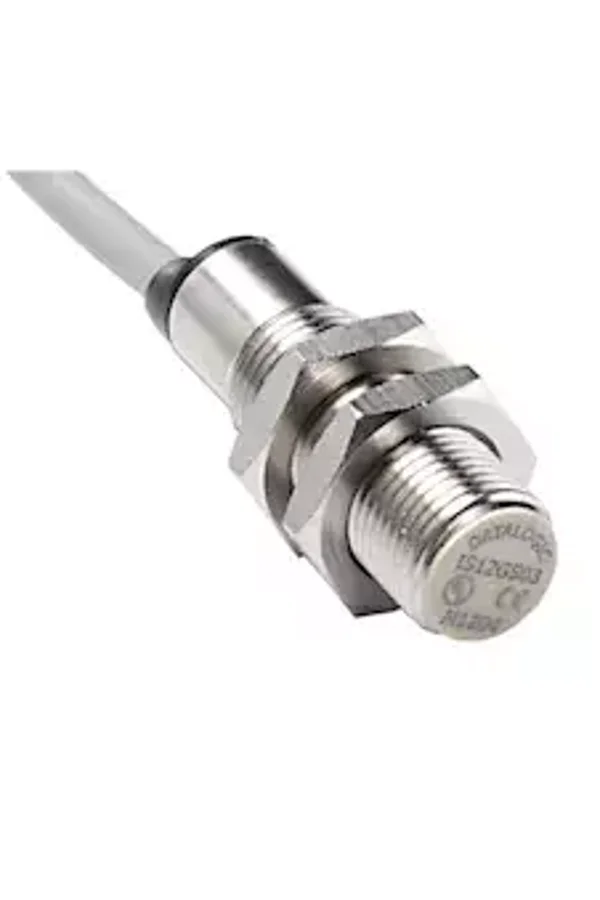

DATALOGIC IS-12-G1-03 The inductive proximity sensor from the basic series was in the classic cylindrical shape made of nickel-plated brass.
The inductive proximity sensor from the basic series was in the classic cylindrical shape made of nickel-plated brass. They are able to metal objects at a distance in a given area. This product series was developed in the following application areas for the requirements: fully automatic machines, packaging lines, conveyor lines, the automotive industry, and automatic bearings.
The inductive proximity sensor from the basic series was in the classic cylindrical shape made of nickel-plated brass.
| SPECIFICATIONS | ||
|---|---|---|
| Type | IS-12-G1-03 | |
| Min. operating voltage | 10 V DC | |
| Max. operating voltage | 30 V DC | |
| Operating voltage | 10 – 30 V DC | |
| Outputs | PNP | |
| Cable length | 2.00 m | |
| Switching distance (max.) | 4 mm | |
| Switching frequency | 500 Hz | |
| Features | LED indicator | |
| Connector | Cable, open end | |
| Installation type | shielded | |
| Size | M12 | |
| Material properties | nickel plated | |
| Enclosure material | Brass | |
| Contact type | 1 maker | |
| IP rating | IP67 | |
| Min. temperature | -25 °C | |
| Max. temperature | +70 °C | |
| Length | 42.5 mm | |
| (Ø) | 12 mm | |
| Dim | (Ø x L) 12 mm x 42.5 mm | |
| Content | 1 pc(s) | |
| Type | IS-12-G 1-03 | |
| Product type | Inductive proximity sensor |
