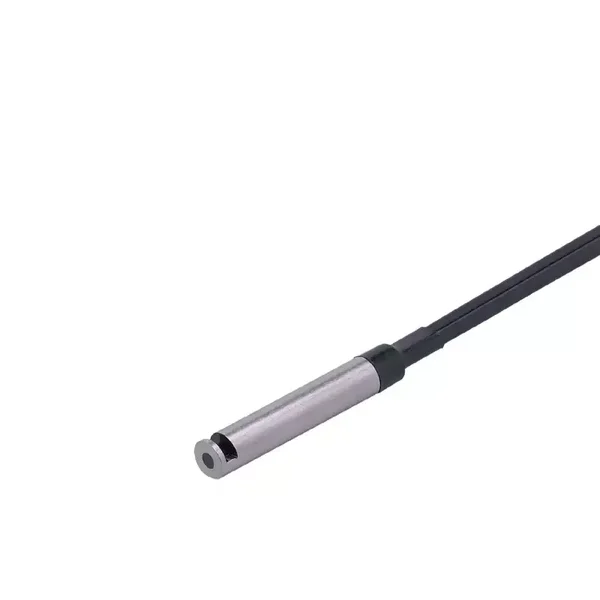

IFM E20715 (FT-11-E-V-E6R/2M)
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- With 90° deflection of the light beam for use where space is restricted
- For cutting to size
- Small bending radius
| Application | |
|---|---|
| Function principle | Diffuse reflection sensor |
| Application | For use in industrial environments |
| Detection zone | |
|---|---|
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
| OB50 | |
|---|---|
| Range fibre optics [mm] | 60 |
| OCF (High Power) | |
|---|---|
| Range fibre optics [mm] | 420 |
| OO50 | |
|---|---|
| Range fibre optics [mm] | 150 |
| Operating conditions | |
|---|---|
| Ambient temperature [°C] | -40…70 |
| Mechanical data | |
|---|---|
| Weight [g] | 52 |
| Version of sensing head | angled |
| Sensing head diameter [mm] | 6 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 25 |
| Fibre material | PMMA |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | PE |
| Accessories | |
|---|---|
| Items supplied | E20103 |
| Remarks | |
|---|---|
| Pack quantity | 1 pcs. |
| Application | |
|---|---|
| Function principle | Diffuse reflection sensor |
| Application | For use in industrial environments |
| Detection zone | |
|---|---|
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
| OB50 | |
|---|---|
| Range fibre optics [mm] | 40 |
