SCHNEIDER ATV12H075M2

Available stocks!

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines.

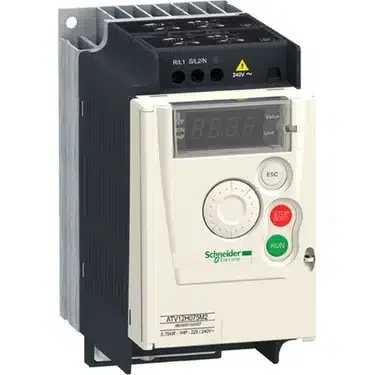

SCHNEIDER ATV12H075M2

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version.

The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transferring of configurations to spare drive, reducing maintenance downtime. It features an optimised application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

SPECIFICATIONS
Range of product Altivar 12
Product or component type Variable speed drive
Product specific application Simple machine
Mounting mode Cabinet mount
Communication port protocol Modbus
supply frequency 50/60 Hz +/- 5 %
[Us] rated supply voltage 200…240 V – 15…10 %
Nominal output current 4.2 A
motor power hp 1 hp
motor power kW 0.75 kW
motor power hp 1 hp
EMC filter Integrated
IP degree of protection IP20
