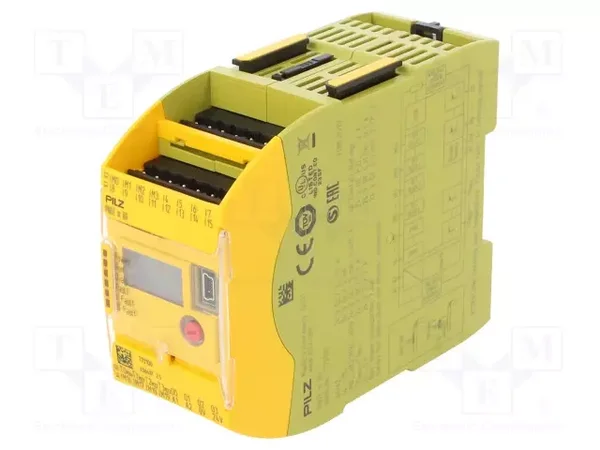

PILZ PNOZ M B0 772100

General data
Approval: CE, UKCA, cULus Listed, KOSHA, TÜV, EAC (Eurasian)
Application range: Fail-safe
Technical data
Electrical data
Purpose of U1: Versorgung des Systems
Supply voltage (V): 24 – 24 V
Type of supply voltage U1: DC
Purpose of U2: Versorgung der HL-Ausgänge
Supply voltage 2 (V): 24
Type of supply voltage U2: DC
Tolerance of U2: -20 %/+25 %
Potential isolation U2: ja
Permitted loads: ohmsch, induktiv, kapazitiv
Configurable inputs/outputs
Number of configurable I/Os: 8
Potential isolation of IO: nein
Short circ. prot. n/safe S/C O: Ja
Voltage at 1 n/safe S/C O: UB – 2 V bei 0,1 A

Number of digital inputs: 12
U input to EN 61131-2 Type 1: 24 V DC
Potential isolation input: nein
Semiconductor outputs
Potential isolation of S/C O: ja
S/C output short circuit proof: ja
Test clock outputs
Number of test pulse outputs: 4
Environmental data
Ambient temperature standard: EN 60068-2-14
Ambient temperature: 0 – 60 °C
Storage temperature standard: EN 60068-2-1/-2
Climatic suitability standard: EN 60068-2-30, EN 60068-2-78
Condensation permitted?: Not permitted
Perm. operating height ASL: 2000 m
EMC to standard …: EN 61131-2
Vibration to standard …: EN 60068-2-6
Acc. shock to standard1: 15g
Clearance & creepage dist. to: EN 61131-2
Overvoltage category: II
Pollution degree clear.&creep.: 2
Protection type standard: EN 60529
Protection type, mounting: IP54
Protection type, housing: IP20
Terminal protection type: IP20
Potential separation
Potential isolation 1 between: SC output and system voltage
Type of potential isolation 1: Basisisolierung
