ALLEN BRADLEY 1756-TBS6H

ALLEN BRADLEY 1756-TBS6H

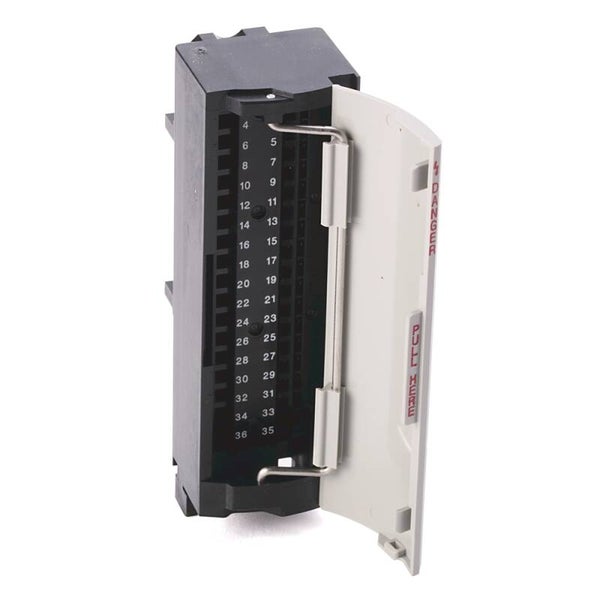

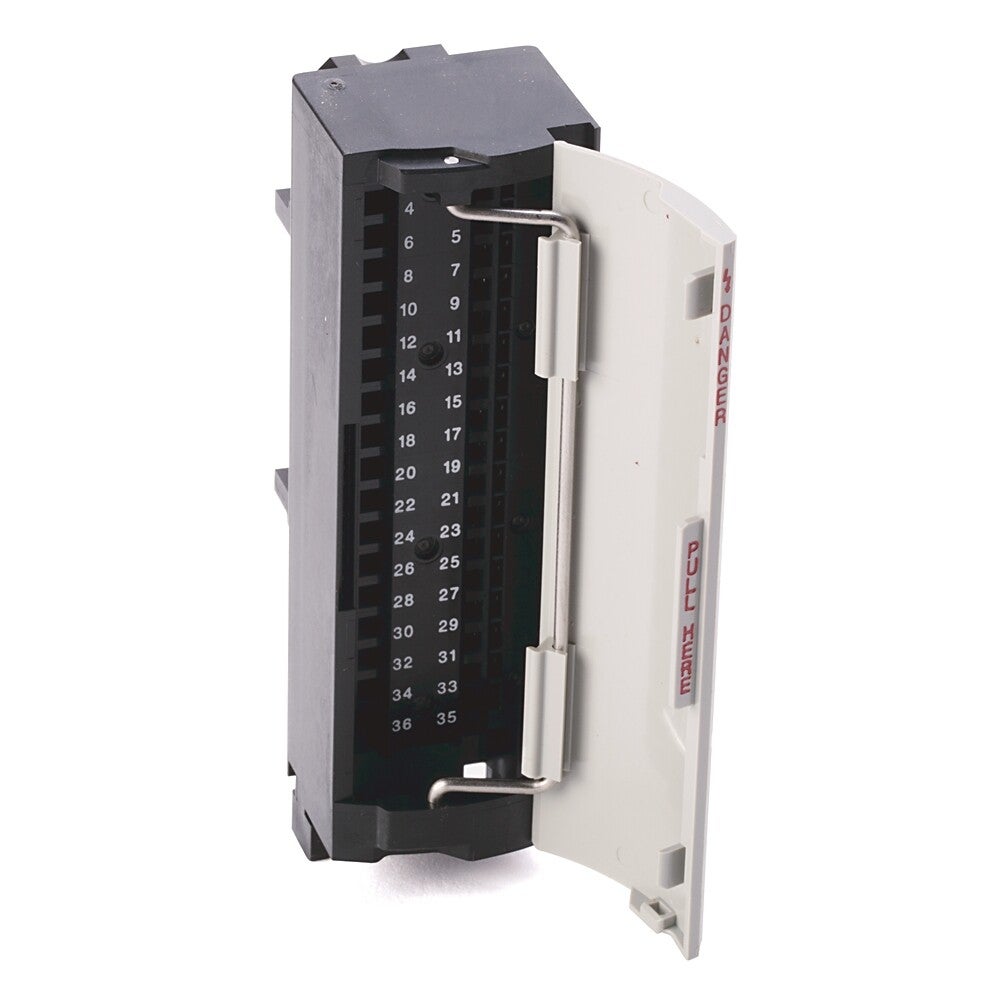

The Allen-Bradley/Rockwell Automation 1756-TBS6H RTB module is a removable terminal block from the ControlLogix series. It can only support 1 conductor per terminal. The 1756-TBS6H RTB module is a spring-clamp type of RTB and a 36-position type RTB. It can support 36 to 18 AWG wires or 23 to 14 AWG wires. The 1756-TBS6H RTB module is a standard-depth RTB that can host standard wiring setups with standard-size wires.

SPECIFICATIONS
Manufacturer Rockwell Automation
Brand Allen-Bradley
Series ControlLogix
Module Type Terminal Block
Clamp Type Spring-Clamp
Pins 36-Pin Connection
Weight 0.3 pounds (0.1 kilograms)

The Allen-Bradley 1756-TBS6H is a Removable Terminal Block (RTB) for 1756 I/O modules. It is an I/O module accessory and must be ordered separately. It provides flexibility in interconnecting 1756 I/O modules and industrial plant wiring. It is easily plugged into the front section of the I/O module.
