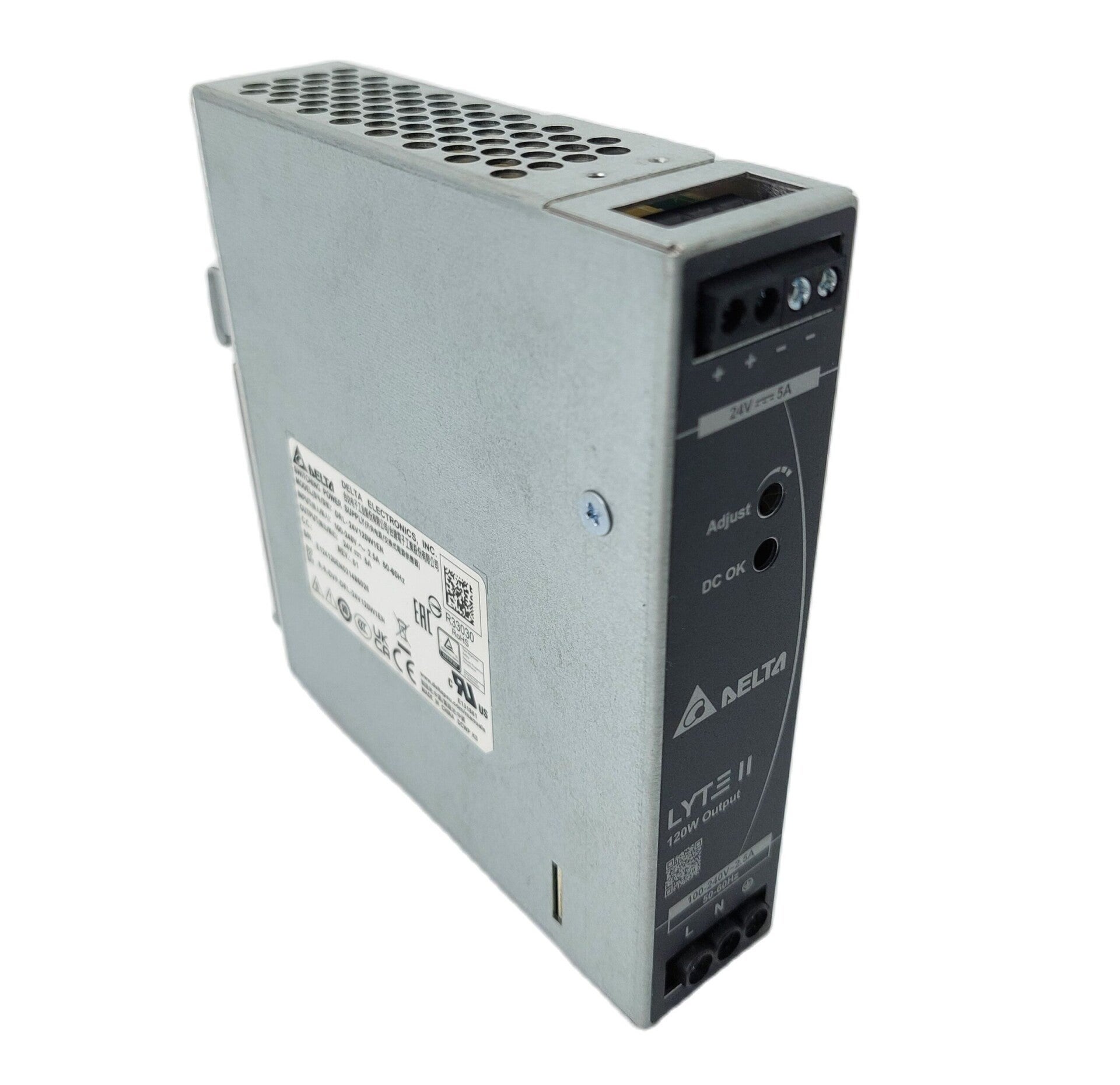

DELTA DRL-24V120W1EN
DELTA DRL-24V120W1EN Universal AC input voltage range Built-in constant current circuit for reactive loads.
| SPECIFICATIONS | |
|---|---|
| Output Current | 5A |
| Output Voltage | 24V |
| Output Voltage Range | 21.6-26.4Vdc |
| Output Voltage Adjustment Range | 21.6-26.4Vdc |
| Output Power | 120W |
| Line Regulation | ± 0.5% @ 115Vac & 230Vac |
| Load Regulation | ± 0.5% |
| PARD | < 150mp @ 0°C to +7Vp0°C < 450mVpp @ -30°C to 0°C |
| Start-up Time | 500ms typ. @ 115Vac & 230Vac |
| Hold-up Time | 10ms typ. @ 115Vac (100% load)16ms typ. @ 230Vac (100% load) |
| Dynamic Response | (Overshoot & Undershoot O/P Voltage)± 10% @ 115Vac & 230Vac input, 10-100% load (Slew Rate: 2.5A/μS, 50% duty cycle @ 5Hz & 10KHz) |
| Start-up with Capacitive Loads | 8,000µF Max |
| Rise Time | 30ms typ. @ 115Vac & 230Vac |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 90-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | 2.1A typ. @ 115Vac, 1.3A typ. @ 230Vac |
| Efficiency at 100% load | 88.5% typ.@ 230Vac |
| Max Inrush Current | 35A typ. @ 230Vac |
| Leakage Current | < 0.5mA @ 240Vac |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 90-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | 2.1A typ. @ 115Vac, 1.3A typ. @ 230Vac |
| Efficiency at 100% load | 88.5% typ.@ 230Vac |
| Max Inrush Current | 35A typ. @ 230Vac |
| Leakage Current | < 0.5mA @ 240Vac |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6 m/s² (2G peak); 10 min per cycle, 60 min for X direction |
| Shock Test (Operating) | IEC 60068-2-27, Half Sine Wave: 10G for duration of 11ms; 1 time in X axis |
| Operating Temperature | -30°C to +70°C (-40°C Cold Start) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | > 40°C de-rate power by 1.67 % / °C @115Vac> 50°C de-rate power by 2.5 % / °C @230Vac |
| Operating Humidity | 20 to 90% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, Half Sine Wave: 50G for duration of 11ms; 3 times per direction, 9 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 2 |
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2000 meters altitude) |
