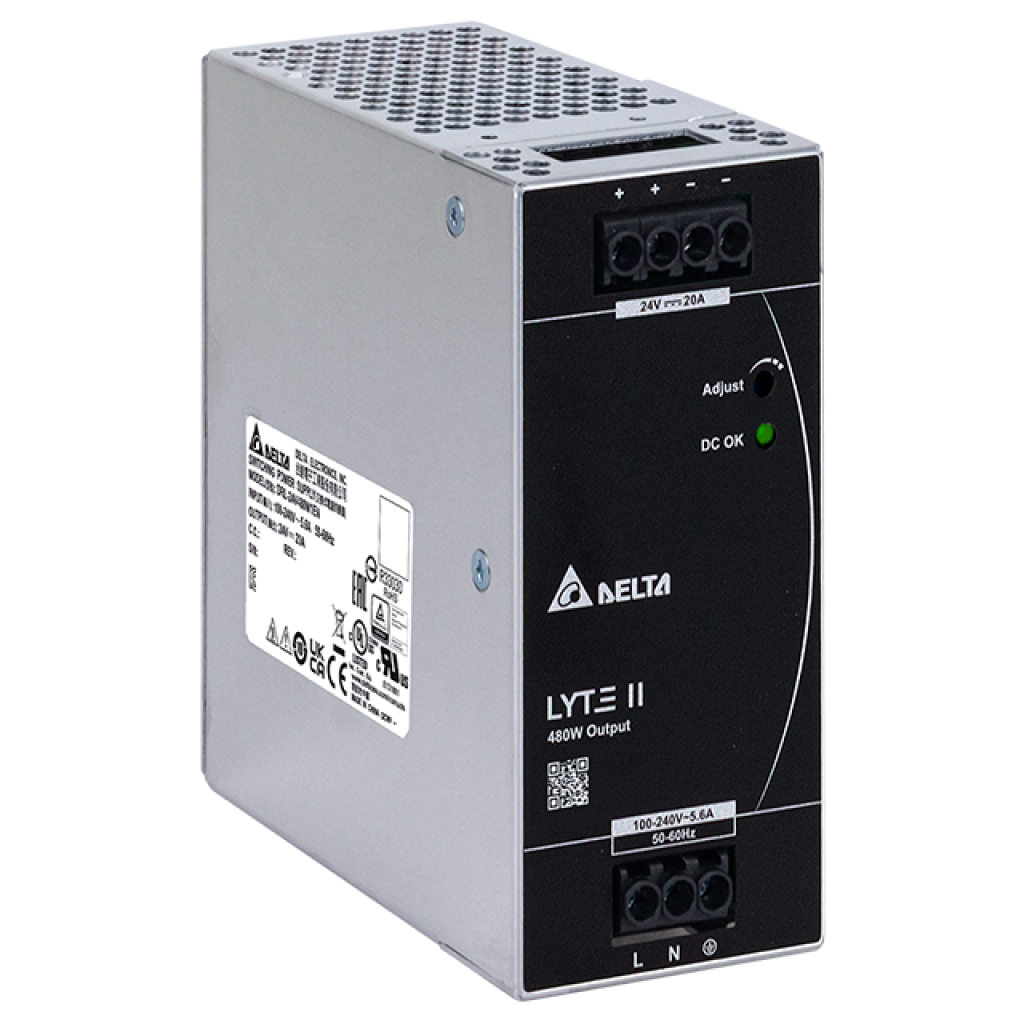

DELTA DRL-24V480W1EN
DELTA DRL-24V480W1EN
| SPECIFICATIONS | |
|---|---|
| Output Current | 20A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Power | 480W |
| Line Regulation | ± 0.5% @ 115 Vac & 230 Vac |
| Load Regulation | ± 0.5% |
| PARD | < 150 mVpp @ 0°C to +70°C< 450 mVpp @ -30°C to 0°C |
| Start-up Time | 500 ms typ. @ 115 Vac & 230 Vac (24 V)800 ms typ. @ 115 Vac & 230 Vac (48 V) |
| Hold-up Time | 25 ms typ. @ 115 Vac & 230 Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 115 Vac & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 kHz) |
| Start-up with Capacitive Loads | 8,000 μF Max |
| Rise Time | 30 ms typ. @ 115 Vac & 230Vac |
| Nominal Input Voltage | 100-240 Vac |
| Input Voltage Range | 90-264 Vac |
| Nominal Input Frequency | 50-60 Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | 4.7 A typ. @ 115 Vac, 2.4 A typ. @ 230 Vac |
| Input Power (Standby Mode) | 0.75 W max @ 115 Vac & 230 Vac |
| Efficiency at 100% load | 93.0% typ. @ 230 Vac |
| Max Inrush Current | 40 A typ. @ 230 Vac |
| Power Factor at 100% load | > 0.96 @ 115 Vac & > 0.93 @ 230 Vac |
| Leakage Current | < 1.5 mA @ 240 Vac |
| Case Chassis / Cover | Aluminum |
| Indicator | Green LED DC OK |
| Cooling System | Convection |
| Input Terminal | 3 Pins (Rated 300V/30A) |
| Output Terminal | 4 Pins (Rated 300V/30A) |
| Noise Sound Pressure Level (SPL) | <25 dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 14-12 Output: AWG 14-12 |
| Unit Weight | 0.87 kg (1.92 lb) |
| Dimensions | 123.6 x 56 x 116.8 mm 4.87” x 2.20” x 4.60” |
