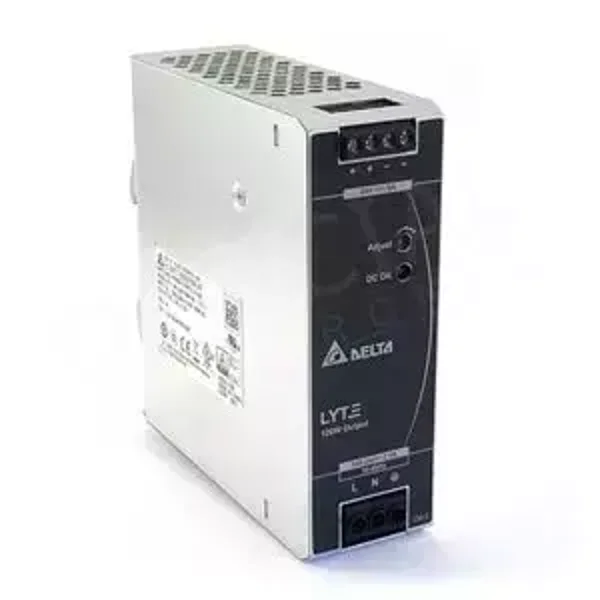

DELTA DRL-24V75W1AZ
HIGHLIGHTS & FEATURES
- Universal AC input voltage range
- Built-in constant current circuit for reactive loads
- Up to 89% efficiency
- Full power from -10°C to +50°C @ 230Vac with -30°C Cold Start
- Compliance to SEMI F47 @ 200Vac
- Limited Power Source (LPS) certified
| SPECIFICATIONS | |
|---|---|
| Output Current | 3.125A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 21.6-26Vdc |
| Output Power | 75W |
| Line Regulation | < 0.5% (@ 85-264Vac, 100% load) |
| Load Regulation | < 1% (0-100% load) |
| PARD | < 120mVpp @ > -10°C to +70°C < 360mVpp @ ≤ -10°C to -30°C |
| Start-up Time | 1200ms typ. @ 115Vac (100% load) 1000ms typ. @ 230Vac (100% load) |
| Hold-up Time | 16ms typ. @ 115Vac (100% load) 60ms typ. @ 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 115Vac & 230Vac input, 0-50%, 50-100% load (Slew Rate: 2.5A/μS, 50% duty cycle @ 100Hz & 1KHz) |
| Start-up with Capacitive Loads | 5,000µF Max |
| Rise Time | 30ms typ. @ nominal input (100% load) |
| INPUT | |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375 Vdc |
| Input Current | 1.4A typ. @ 115Vac, 0.9A typ. @ 230Vac |
| Efficiency at 100% load | 89% typ. @ 230Vac |
| Max Inrush Current | 50A typ. @ 230Vac |
| Leakage Current | < 1mA @ 240Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Unit Weight | 0.22 kg (0.49 lb) |
| Dimensions | 123.6 x 27 x 102 mm 4.87” x 1.06” x 4.02” |
