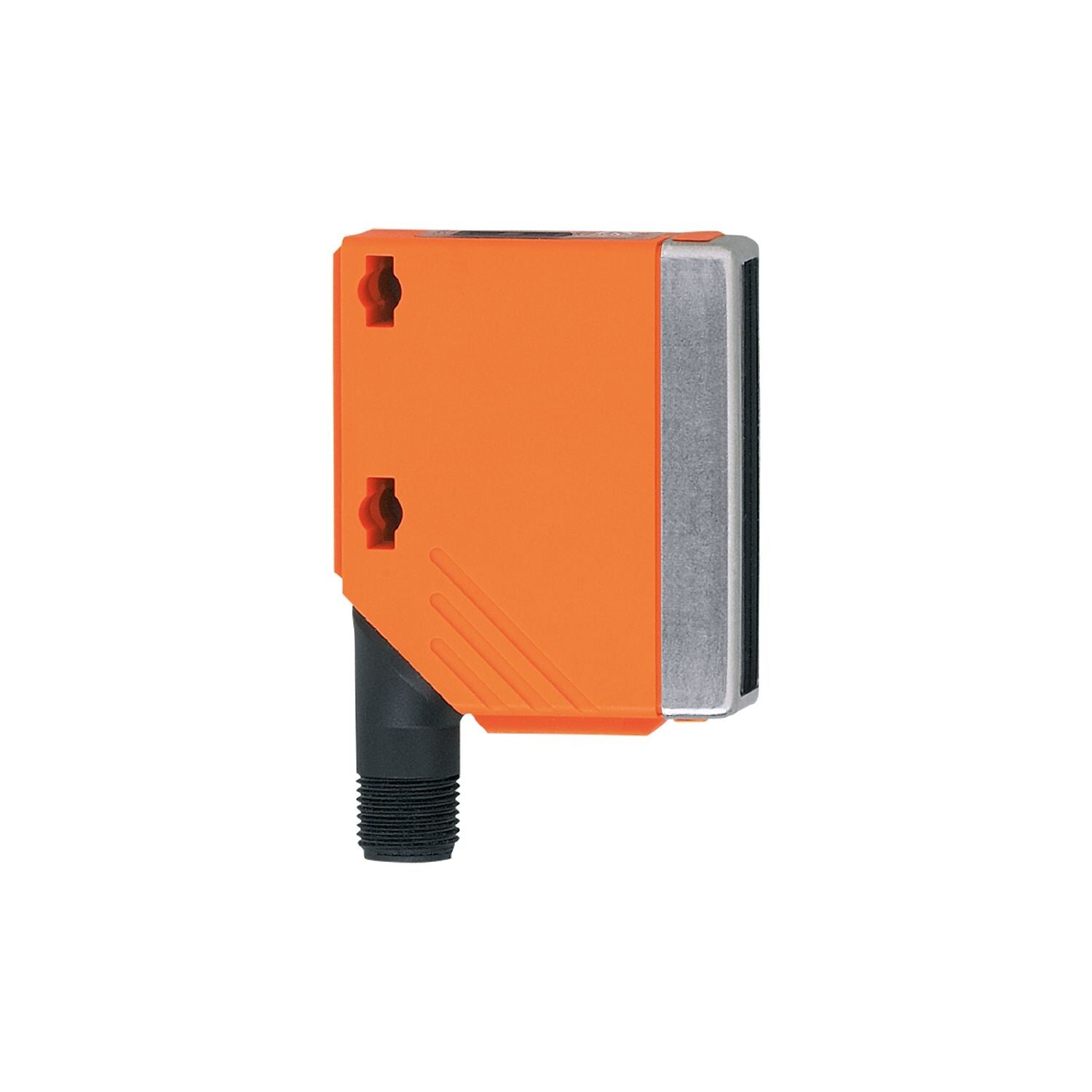

IFM O5H500 (O5H-FPKG/US100)
IFM O5H500 Robust housing for use in harsh industrial environments Sensitivity adjustable via teach buttons
| SPECIFICATIONS | |
|---|---|
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
| Electrical data | |
| Operating voltage [V] | 10…36 DC |
| Current consumption [mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone | |
| Range [mm] | 50…1800; (white paper 200 x 200 mm 90% remission) |
| Range on white object (90 % remission) [mm] | 50…1800 |
| Range on grey object (18 % remission) [mm] | 50…900 |
| Range on black object (6 % remission) [mm] | 50…600 |
| Range adjustable | yes |
| Max. light spot diameter [mm] | 50 |
| Light spot dimensions refer to | Range |
| Background suppression available | yes |
| Operating conditions | |
| Ambient temperature [°C] | -25…60 |
| Protection | IP 67 |
