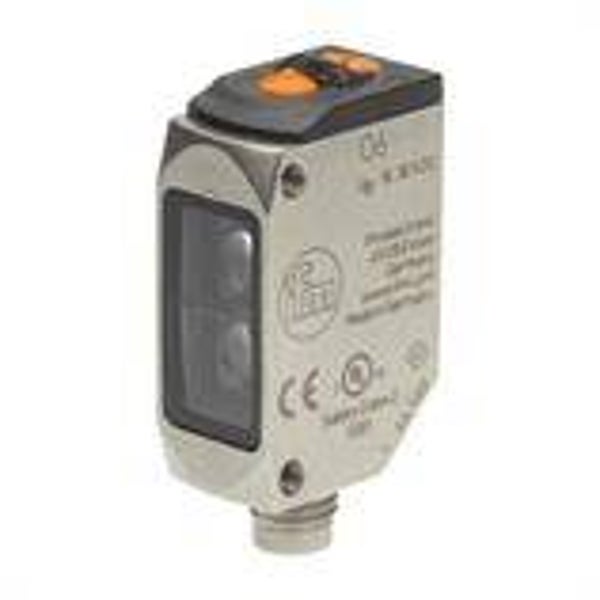

IFM O6H302 O6H-FPKG-AS-3P
DIFFUSE REFLECTION SENSOR WITH BACKGROUND SUPPRESSION.
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Particularly interference-immune background suppression even with strongly reflecting backgrounds
- Intuitive setting of range and output function
| SPECIFICATIONS | |
|---|---|
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Special feature | Background suppression |
| Function principle | Diffuse reflection sensor |
| Electrical data | |
| Operating voltage [V] | 10…30 DC |
| Current consumption [mA] | 22; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 633 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Detection zone | |
| Range [mm] | 2…200; (white paper 200 x 200 mm) |
| Range on white object (90 % remission) [mm] | 2…200 |
| Range on grey object (18 % remission) [mm] | 4…200 |
| Range on black object (6 % remission) [mm] | 8…200 |
| Range adjustable | yes |
| Max. light spot diameter [mm] | 8 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Operating conditions | |
| Ambient temperature [°C] | -25…80 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
