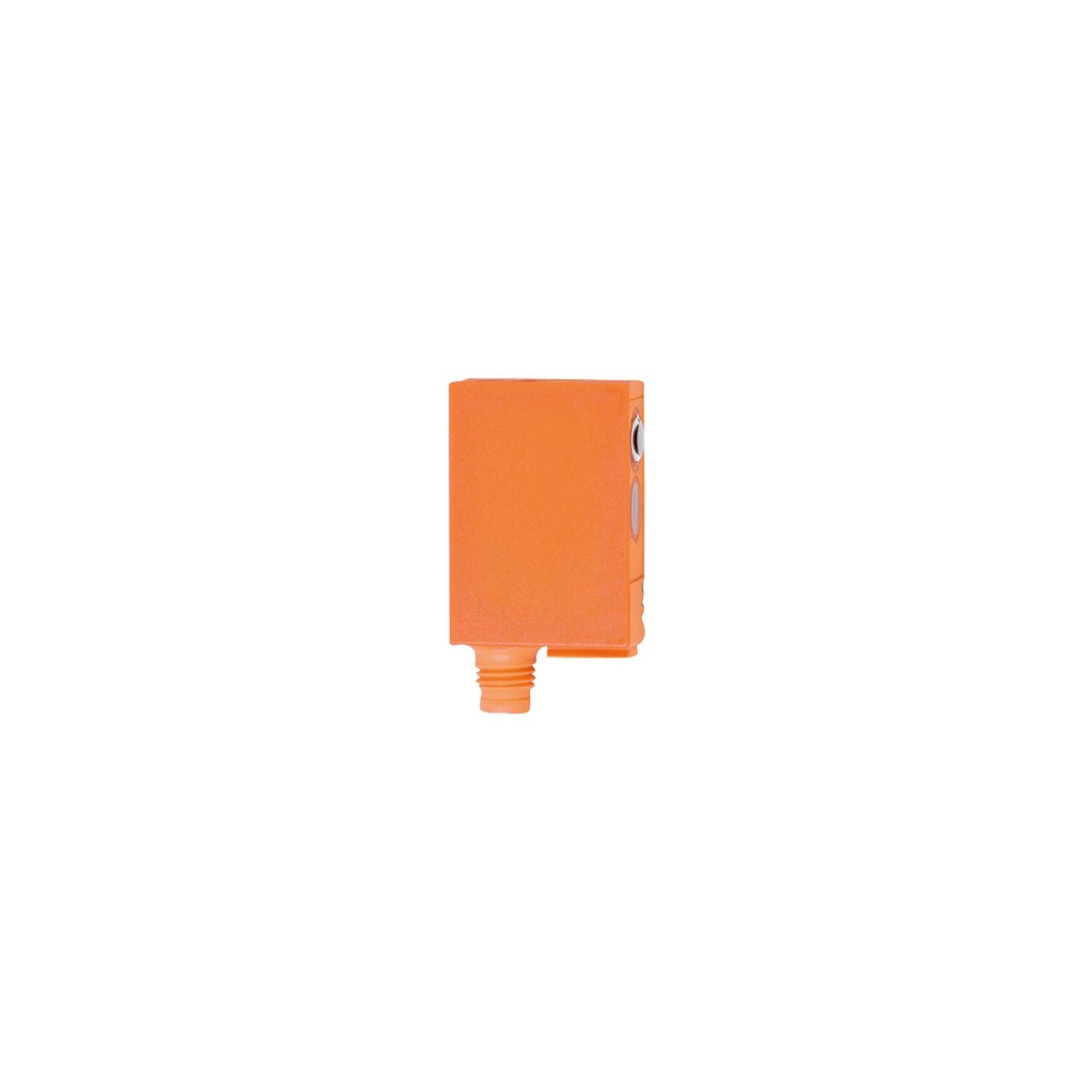

IFM OJ5022 (OJB-FPKG/SO/AS)
IFM OJ5022 Particularly compact housing for use where space is restricted Simple alignment due to visible red light.
| SPECIFICATIONS | |
|---|---|
| Type of light | red light |
| Housing | rectangular |
| Application | |
| Function principle | Diffuse reflection sensor |
| Electrical data | |
| Operating voltage [V] | 10…30 DC |
| Current consumption [mA] | < 22 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 660 |
| Outputs | |
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Detection zone | |
| Range [mm] | 1…600; (white paper 200 x 200 mm 90% remission) |
| Range adjustable | yes |
| Max. light spot diameter [mm] | 60 |
| Light spot dimensions refer to | at maximum range |
| Operating conditions | |
| Ambient temperature [°C] | -25…60 |
| Protection | IP 67 |
