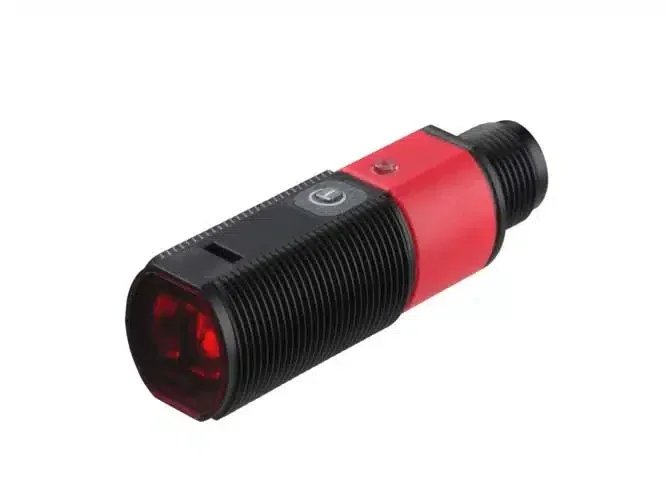

LEUZE ET318B3-4P (50122558)
LEUZE ET318B3-4P Polarity reversal protection Short circuit protected.
| SPECIFICATONS | |
|---|---|
| Series | 318B |
| Operating principle | Diffuse reflection principle |
| Operating range, white 90% | 0.001 … 0.7 m |
| Operating range, gray 50% | 0.001 … 0.59 m |
| Operating range, gray 18% | 0.003 … 0.39 m |
| Operating range, black 6% | 0.005 … 0.28 m |
| Operating range limit, white 90% | 0.001 … 1 m |
| Operating range limit, gray 50% | 0.001 … 0.85 m |
| Operating range limit, gray 18% | 0.003 … 0.55 m |
| Operating range limit, black 6% | 0.002 … 0.4 m |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protectionShort circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Plastic |
| No. of pins | 4 -pin |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 46 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Lens cover material | Plastic |
| Net weight | 20 g |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 … 60 °C |
