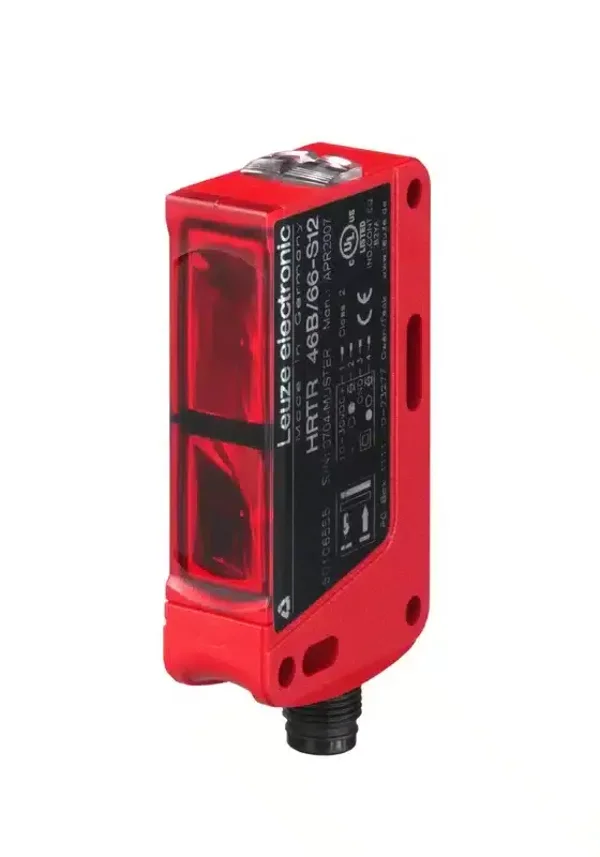

LEUZE HRT 46B/66-S122 ( 50106547 )
LEUZE HRT 46B/66-S122 this an historic product which is not available, thus not updated anymore
| SPECIFICATONS | ||
|---|---|---|
| Type | HRT 46B/66-S12 | |
| Functions | Background suppression | |
| Min. operating voltage | 10 V DC | |
| Max. operating voltage | 30 V DC | |
| Operating voltage | 10 – 30 V DC | |
| Connector | M12 (4-pin) | |
| Transmitter type | LED IR | |
| Max. range | 2500 mm | |
| IP rating | IP67/IP69K | |
| Width | 18.5 mm | |
| Height | 75 mm | |
| Depth | 43.4 mm | |
| Dim | (W x H x D) 18.5 x 75 x 43.4 mm | |
| Product type | Retroreflective photo sensor |
