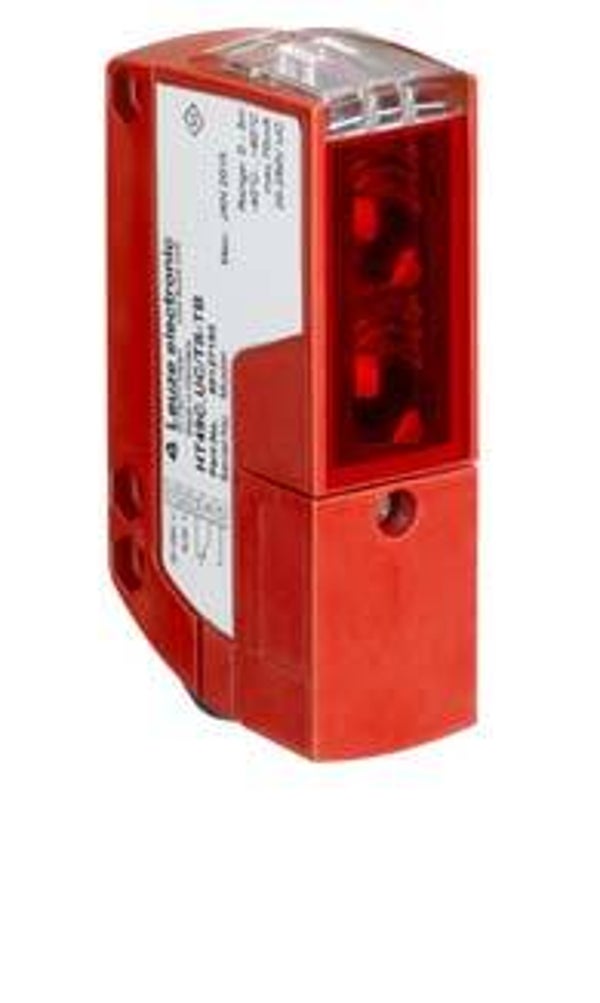

LEUZE HT49CUC-TS-TB ( 50127193 )
LEUZE HT49CUC-TS-TB
| SPECIFICATONS | |
|---|---|
| Series | 49C |
| Operating principle | Diffuse reflection principle with background suppression |
| Black-white error | < 10% up to 1200 mm |
| Operating range, white 90% | 0.005 … 3 m |
| Operating range, gray 18% | 0.02 … 2 m |
| Operating range, black 6% | 0.05 … 1.5 m |
| Operating range limit, white 90% | 0.005 … 3 m |
| Adjustment range | 120 … 3,000 mm |
| Light source | LED, Red |
| Protective circuit | Interference blankingTransient protection |
| Supply voltage UB | 20 … 250 V, AC/DC |
| Power consumption (with AC) | 1.5 V·A |
| Number of digital switching outputs | 2 Piece(s) |
| Switching element | Relay, NC |
| Switching principle | Light/dark reversible |
| Switching frequency | 25 Hz |
| Response time | 20 ms |
| Type of connection | Terminal |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 31 mm x 104 mm x 55.5 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic |
| Net weight | 150 g |
| Type of fastening | Through-hole mountingVia optional mounting device |
