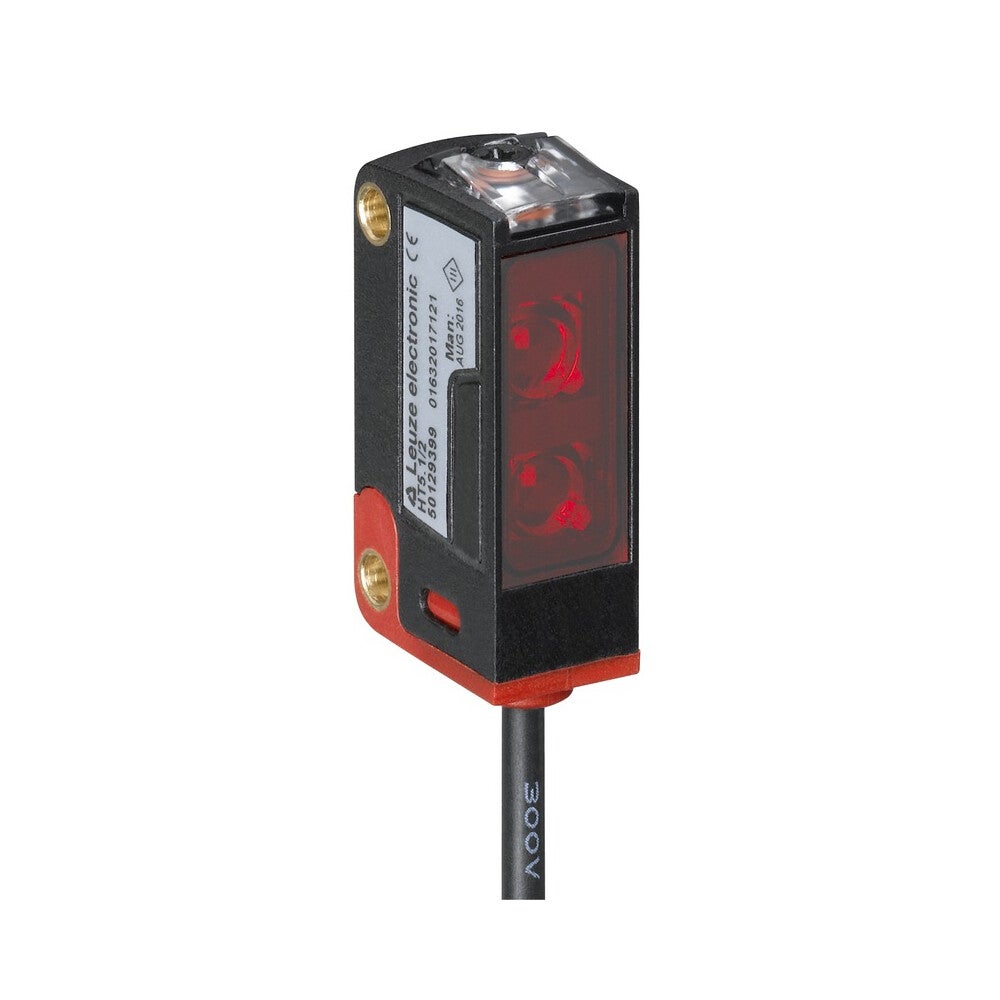

LEUZE HT5-1-4-M8-3 SENSOR
LEUZE HT5-1-4-M8-3 SENSOR
| SPECIFICATONS | |
|---|---|
| Series | 5 |
| Operating principle | Diffuse reflection principle with background suppression |
| Black-white error | < 15% up to 200 mm |
| Operating range, white 90% | 0.005 … 0.4 m |
| Operating range, gray 18% | 0.01 … 0.3 m |
| Operating range, black 6% | 0.015 … 0.2 m |
| Operating range limit | 0.005 … 0.4 m |
| Adjustment range | 15 … 400 mm |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protectionShort circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Type of connection | Connector |
| Thread size | M8 |
| Material | Plastic |
| No. of pins | 3 -pin |
| Dimension (W x H x L) | 11.4 mm x 32.1 mm x 17.8 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Net weight | 10 g |
| Type of fastening | Two M3 threaded sleevesVia optional mounting device |
| Operational controls | Multiturn potentiometer |
