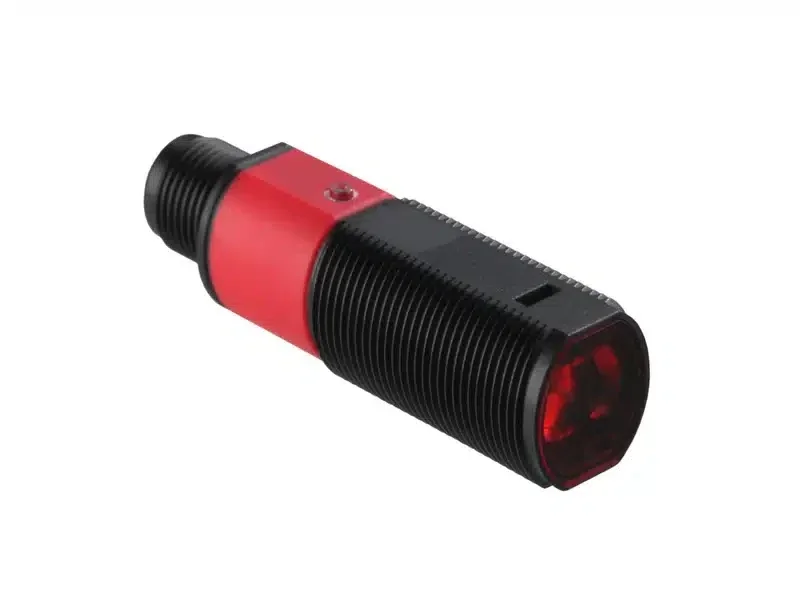

LEUZE PRK318B/2N-M12 (50116857)
LEUZE PRK318B/2N-M12
| SPECIFICATIONS | |
|---|---|
| Series | 318B |
| Operating principle | Reflection principle |
| Operating range | 0.02 … 4.5 m, With reflector TK(S) 100×100 |
| Operating range limit | 0.02 … 6 m, With reflector TK(S) 100×100 |
| Light source | LED, Red |
| Protective circuit | Polarity reversal protectionShort circuit protected |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Plastic |
| No. of pins | 4 -pin |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 46 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Lens cover material | Plastic |
| Net weight | 20 g |
| Ambient temperature, operation | -40 … 60 °C |
